LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil

LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil
LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil

Large Image :  LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil

Product Details:
Place of Origin: China
Brand Name: Easier Way Med
Certification: CE/ISO/COA
Model Number: Electric surgical pencil
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Packaging Details: 1pc/pack,100pcs/carton
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per day

LAPIZ DE CAUTERIO CUREPRO Medical Disposable Electrosurgical Pencil

Description
Product Name: Electric Surgical Pencil Material: ABS Plastic. Latex-free
Length: 190±2mm Cable Length: 3m
Shelf Life: 5 Years Sterilization: EO Gas
OEM: Avaialble Cable: PVC Insulation
Classification: IIa
High Light:

EO disposable electrosurgical pencil

,

190mm electrosurgical pencil

,

PVC disposable electrosurgical pencil

LAPIZ DE CAUTERIO CUREPRO Medical disposable electric surgical pencil



Brief product Introduction:

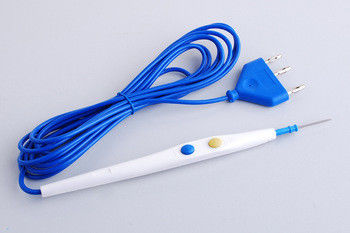

1. The Sterile electrosurgical pencil, DB-01, is a handheld accessory for high voltage high frequency electrosurgical devices. By pressing the yellow and blue buttons on the pencil, it performs its function during the surgical operation to CUT tissue and to COAGULATE tissue to stop bleeding.



2 Construction - The product consists of detachable electrodes, plastic hand piece with two control buttons, 3 meters long cable, 3-pin plug:



3 The pencil is designed to conform the requirements of EN60601-1 and EN60601-2-2 and the following requirements:





MODEL DB-01:



Sterile Electrosurgical pencil is a monopolar hand-held active electrode intended to produce certain physical effects required in radiofrequency(R.F.) electrosurgery. The R.F. generator generates electricity power and sends power through this accessory for cutting and coagulation. This pencil has two buttons on the hand-piece. The yellow button near to the tip is for "CUT" function and the blue one is for "COAG"coagulation function. They can be used for incision, coagulation or both, in general surgery or a variety of other fields including orthopedics, cardiology, gynecology, urology, neurosurgery, dermatology, otolaryngology, and gastroenterology.

Caution: Electrosurgical pencil is forbidden to use on the patient with metal implanted or heart pump.

TECHNICAL FEATURES
MODEL DB-01
DESCRIPTION Hand control pencil, housing 2.36mm(3/32”) with standard hex blade electrode and cable, Sterile
MATERIAL High resistance ABS plastic. Latex-free
LENGTH 190±2mm
ELECTRODE Removable standard hex blade electrode
CABLE PVC Insulation
CABLE LENGTH 3m
CONNECTOR Tripler universal Valley lab type
STERILISATION inradial sterilizations
MAX. OPERATING VOLTAGE 10.8kV peak-to-peak balanced

COMPLIANCE TO ELECTRICAL

SAFETY STANDARDS

EN 60601-1 EN 60601-2-2 AAMI/ANSI/HF18
COMPLIANCE TO DIRECTIVE Directive 93/42/EEC. Class IIB device



PACKAGING

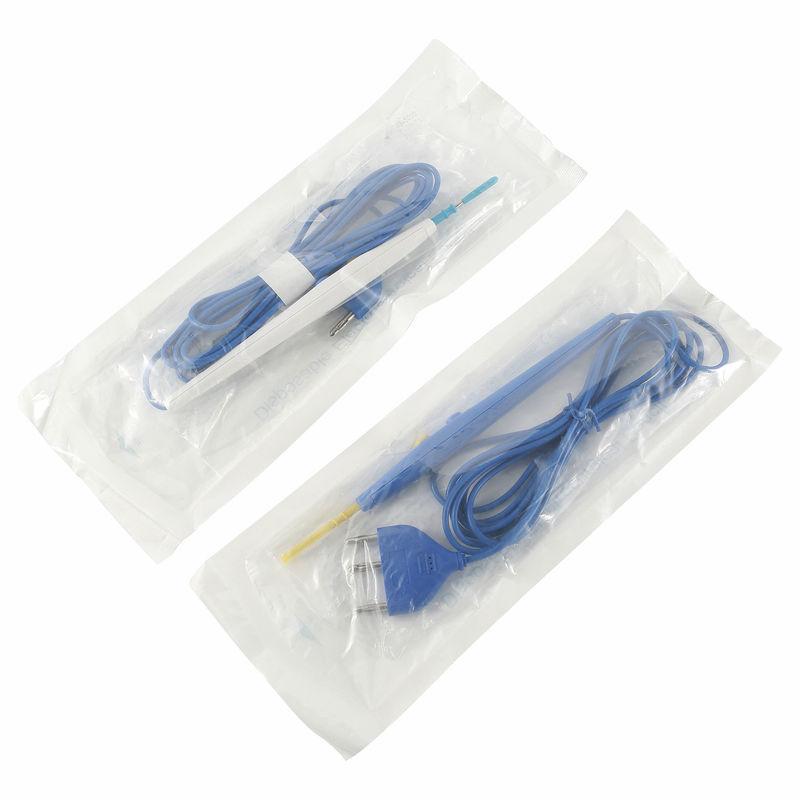

PRIMARY PACKAGING Singly packaged in sealed paper pouch coupled with polyethylene.
Production environment and sterilization The production and assembly of all product parts and accessories are completed in 100,000 clean workhouses which are in line with the requirements. Inner packing uses paper-plastic bag. And after large packing, all the products are sterilized by ethylene oxide (EO) for single use.
STORAGE

Temperature 0 ~ +50 °C

Relative humidity: 20 ~ 80%

EXPIRY 5 years from production date if correctly stored
